Newest arrival face recognition terminal with infrared thermograph for body temperature detector

Short Description:


  • Function : Body temperature screening face recognition terminal
  • Model No.: SYT-FR2020
  • Resolution: 800*1280
  • Screen size: 8 inch IPS screen
  • Viewing Angle: 89/89/89/89
  • Android Version: RK3288/RK3399 2G+8G Android 5.1/7.1 OS
  • Camera: 200W Color+200W IR,Wide Dynamic
  • User record: 200000 (MAX)
  • Facial storage: 20000 (MAX)
  • Power supply: DC 12V 2A
  • Product Detail

    Product Tags



    Body temperature screening face recognition terminal is an innovative artificial intelligence device. The terminal integrates offline face recognition, body temperature detection, mask recognition, identity verification, on-site face collection, blacklist early warning, passing photos, live detection, etc.. It adopts wide dynamic high-definition face recognition camera, which is fully adapted to harsh environments such as strong back light and low light. It has the characteristics of fast recognition speed, high accuracy, and large list library capacity. It can be used with real-name system of face construction site management system, face access control and attendance management system, visitor management system and other application management systems. Perfectly suitable for complex application scenarios such as community temperature monitoring, identity recognition and access control in communities, campuses, hospitals, scenic areas, hotels, shopping malls, corporate office buildings, public service places, and construction sites. In terms of epidemic prevention and control,the potential risks are effectively reduced which brought by large-scale contact with the human body during temperature measurement,shortened the temperature measurement time, and improved the temperature measurement efficiency. At the same time, centralized management provides real-time data support for screening and tracing suspect patients and mobile personnel, and provides strong security guarantees for management in the above scenarios.

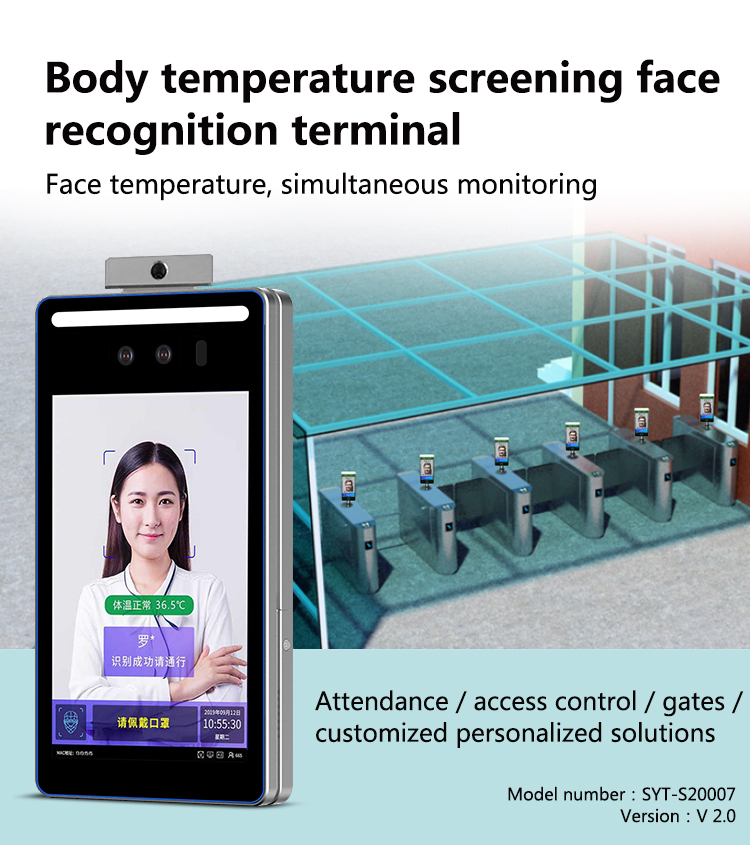

    人脸识别_01

    Model No.:SYT-FR2020
    Android Version ” RK3288/RK3399 2G+8G Android 5.1/7.1 OS
    Touch monitor version optional USB for touch,HDMI input port
    Screen size: 8inch IPS screen
    Resolution: 800*1280
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Body material CNC Aero-grade aluminium alloy,sand blast or oxidation surface finish
    Camera 200W Color+200W IR,Wide Dynamic
    communication way RJ 45 ,WIFI (4G optional)
    recognition way Facial,temperature,RFID
    User record 200000 (MAX)
    Facial storage 20000 (MAX)
    Voice indication Built-in speaker,Language broadcasts support TTS
    Body sensor or Light sensor optional
    Traffic lights Green light permission enter,Red light forbid enter
    MAX distance 100cm (can be customized other requirements) ,Body temperature -20~100 degree centigrade
    Language English,Chinese
    Exteral port “RS485,RS232,TTL,WG,I/O
    Power supply DC 12V 2A
    Outer size 130*255*25mm W/H/T

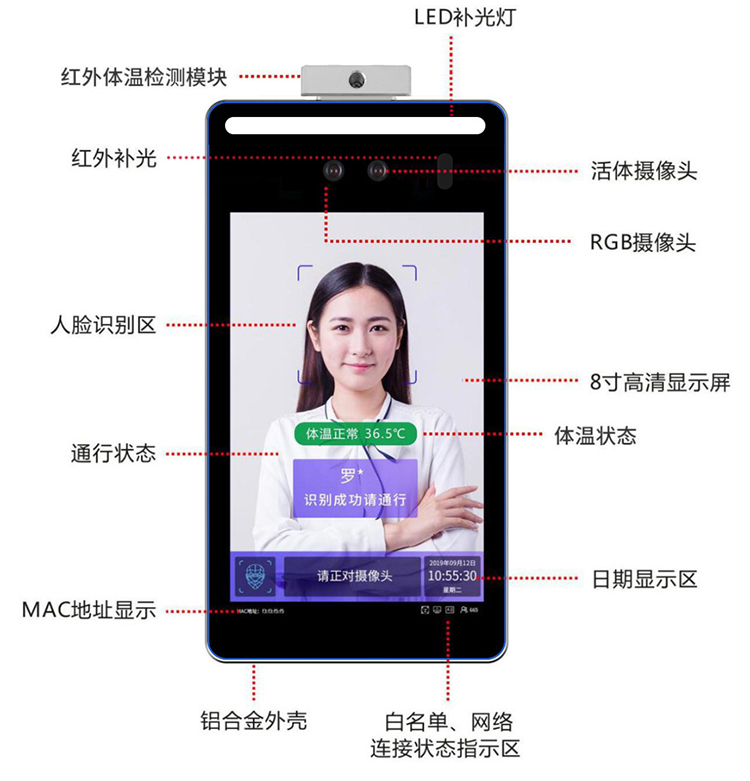

    人脸识别_03

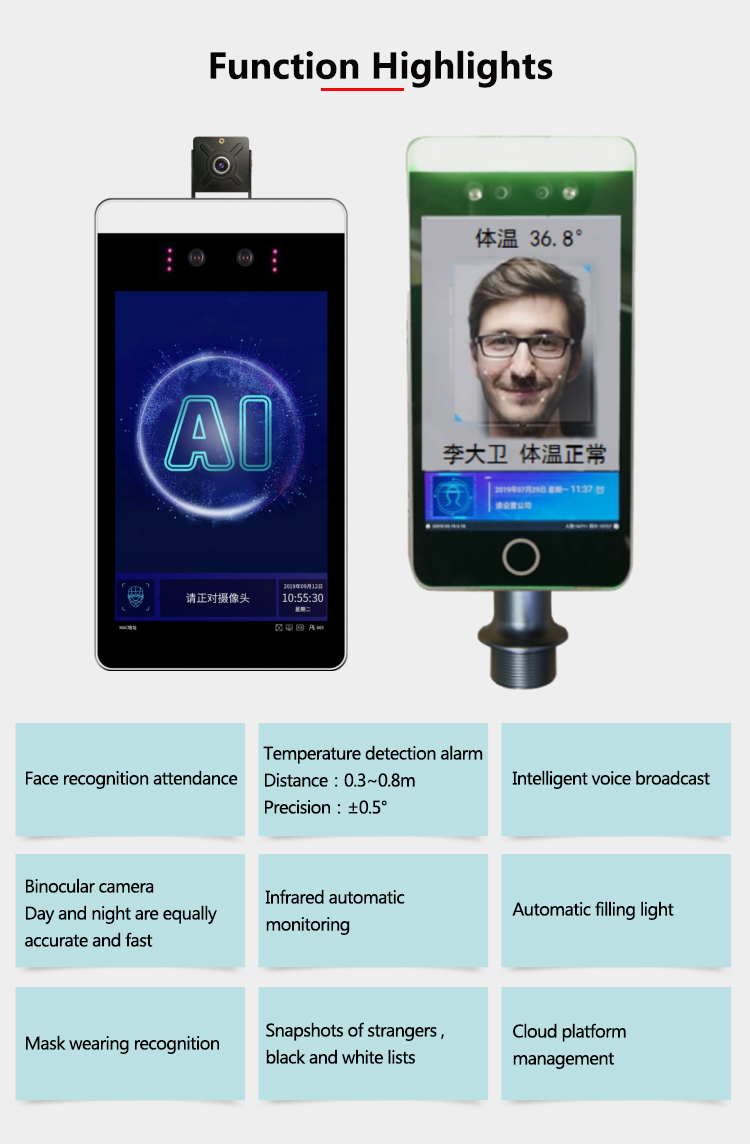

    人脸识别_04

    Product features



    Using offline face recognition technology, can identify multiple races such as yellow, white and black

    Supports facial recognition whitelist access, blacklist warning, and photo passing

    Supports identifying whether or not a person wears a mask to achieve directional humanized voice prompts and strengthen awareness of prevention

    Support external high-precision infrared body temperature detection module, realize non-contact self-service measurement of human body temperature, reduce cross infection risk

    Support voice alarm for abnormal body temperature and block traffic

    Support the backstage PC system to centrally manage traffic records such as body temperature, visitors, white list, etc., with real-time data traceability

    Supports external ID card readers

    Support external IC / ID card reader to realize human-card comparison function

    Supports binocular live detection to prevent photo attacks

    Self-service face collection and batch import list, list management is more labor-saving and time-saving

    Customized voice for personalized voice broadcast

    Support picture and video advertisement playback

    Up to 150,000 pieces of data (cyclic writing)

    Support remote upgrade and USB disk upgrade on the management side

    Open interface, support secondary development and docking

    High-end aluminum alloy material, surface oxidation process

    人脸识别_05

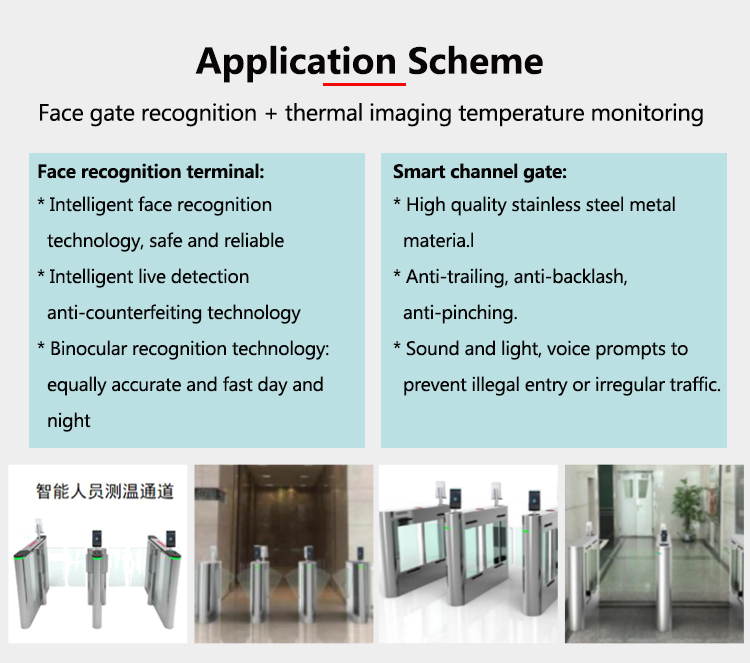

    人脸识别_06



    人脸识别_07

    Shenzhen SYTON LCD display products,digital signage kiosk can be widely used in many commercial and industrial area:

    1) Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
    2) Entertainment Places: Movie theater, Fitness center, Vocational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
    3) Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
    4) Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist’s shop, etc.
    5) Public Service: Hospital, School, Telecom, Post office, etc.
    6) Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.

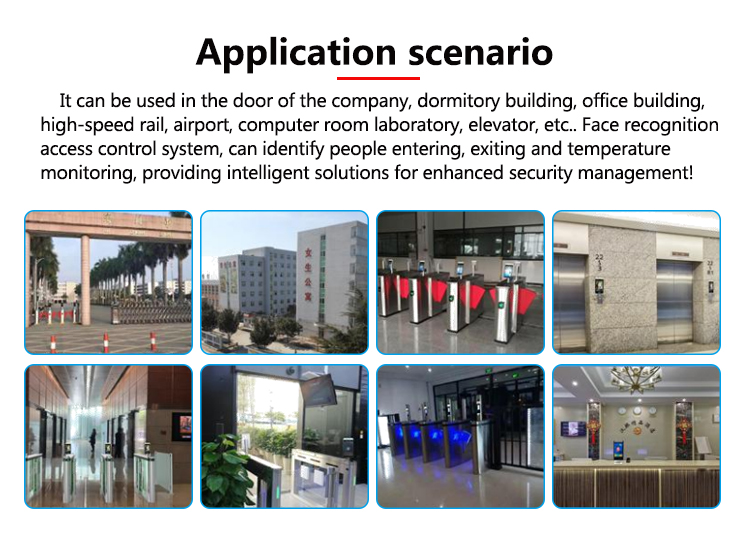

    人脸识别_08

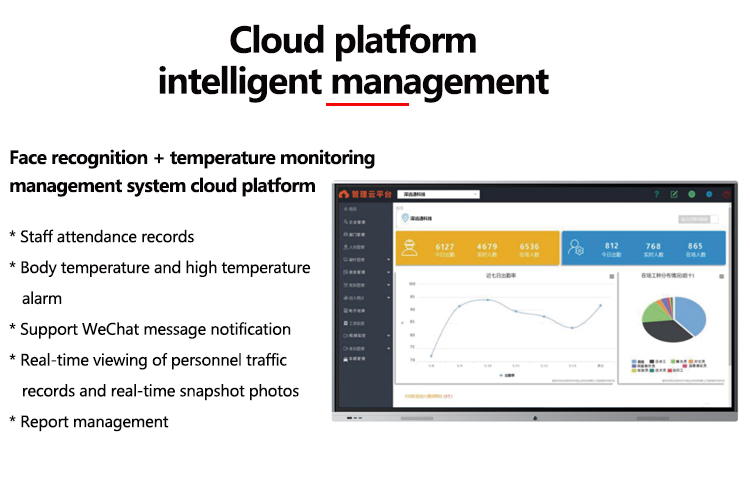

    人脸识别_09
