Bar screen

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Download as PDF

    Product Detail

    Product Tags

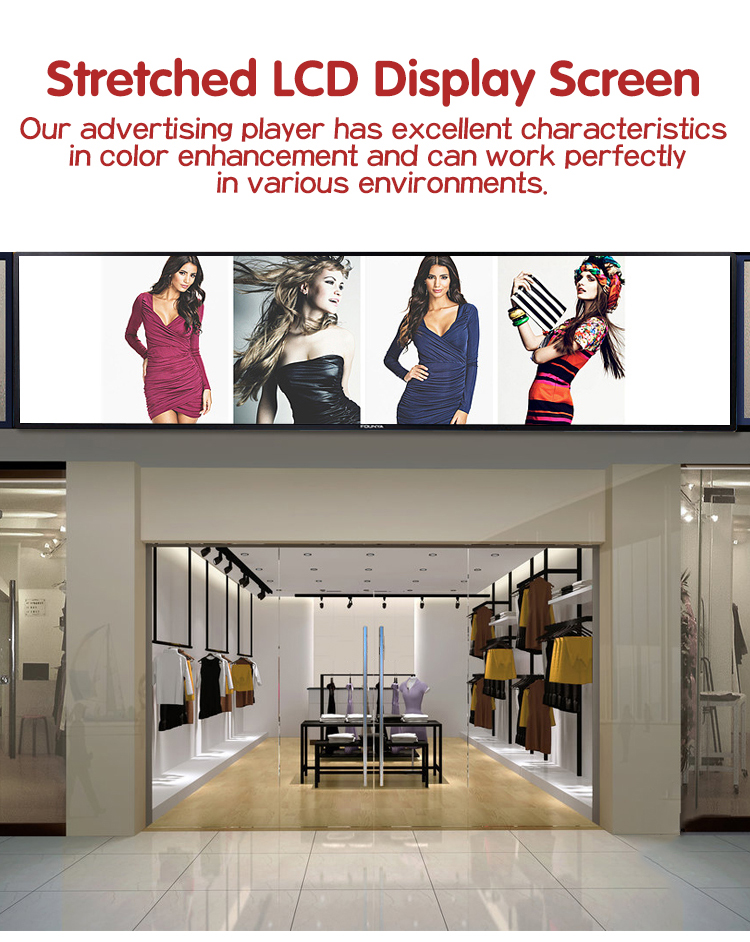

    Stretched Bar LCD Display
    SIZE
    28 Inch
    Resolution
    1920*360
    Aspect Ratio
    ＞3:1(W:H)
    Brightness (w/o TP)
    500cd/m2
    Contrast Ratio
    1200:1
    Viewing Angle(H/V)
    88/88/88/88(U/D/L/R)
    Response Time(G to G)
    6 (Typ.)ms
    Display areamm(V)
    698(H)*130.95
    Unit outline dimensions(mm)
    729*161*47.5
    LCD Life Time
    30000hours
    USB Port
    2
    HDMI
    1
    VGA
    N/A
    Ethernet
    1
    SD / TF Slot
    TF*1
    Power Port
    DC2.0
    CPU
    A40i, quad -ARM Cortex A7
    Memory
    1G
    Storage
    8G
    Connection
    WIFI 802.11b/g/n
    Speaker
    2*3W
    Power Consumption
    ≤45W
    Operation Temp.
    0--50°
    Non-Operation Temp.
    -20--60°
    Relative Humid.
    20%~85% RH/n-Condensing
    OS & Version
    Android 7.1
    VESA Mounting
    200*60mm
    Accessories
    fixed board, power adapter（12V/5A）
    Net Weight
    4.2kg
    Gross Weight
    5.1kg

    条形屏 (1) 条形屏 (2) 条形屏 (3) 条形屏 (4) 条形屏 (5) 条形屏 (6) 条形屏 (7) 条形屏 (8) 条形屏 (9) 条形屏 (10) 条形屏 (11) 条形屏 (12) 条形屏 (13) 条形屏 (14) 条形屏 (15) 条形屏 (16) 条形屏 (17) 条形屏 (18) 条形屏 (19) 条形屏 (20) 条形屏 (21) 条形屏 (22) 条形屏 (23) 条形屏 (24)
